Description
Specifications: 10″–24″ / inch（250mm—600mm）

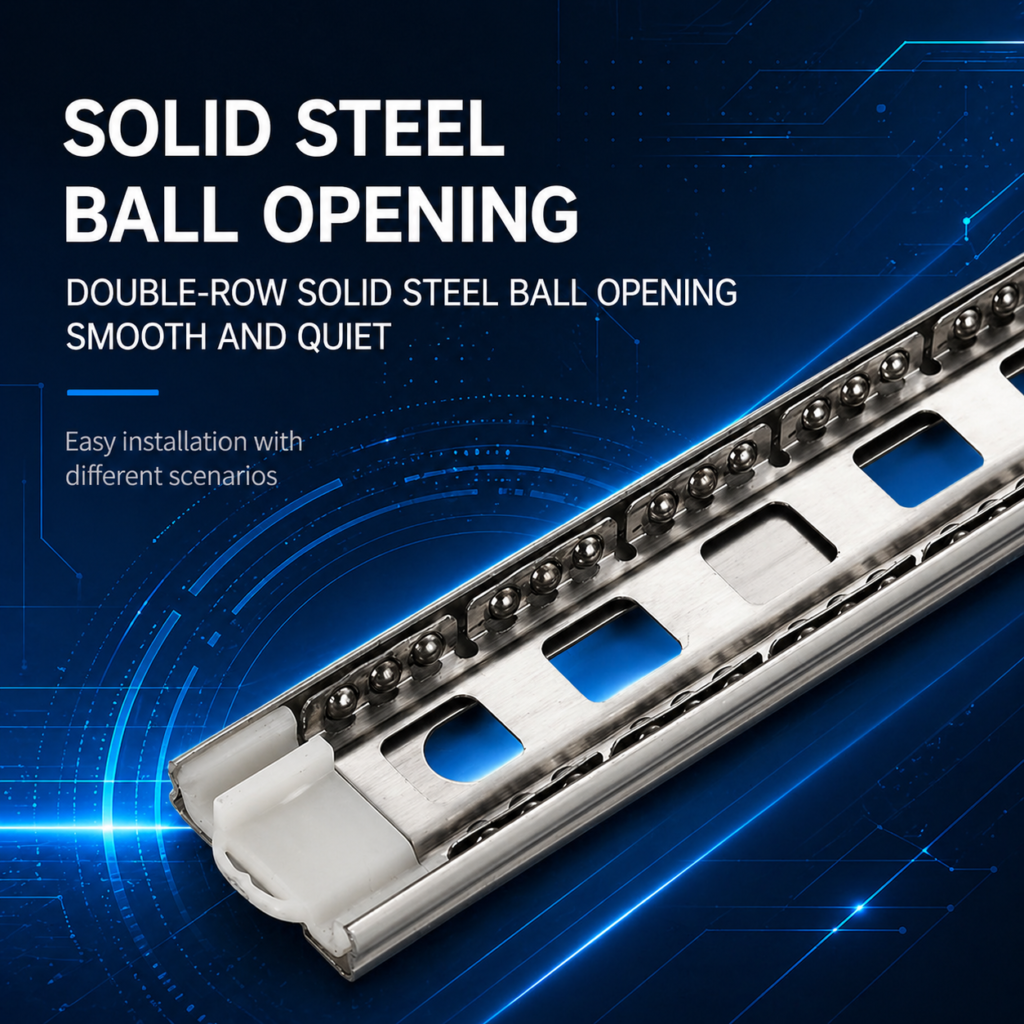

Steel Ball Bearings: 3–4 balls
Recommended Applications:
Suitable for medium-load mobile cabinets, counter drawers, general furniture, or any application requiring full extension with a load capacity under 45 kg.
Product Features:
Adjustable clearance during installation.
Quick-release mechanism for easy drawer removal.
Shock-absorbing ball bearing strip helps reduce impact and prevents the drawer from popping out.
Installation Method:

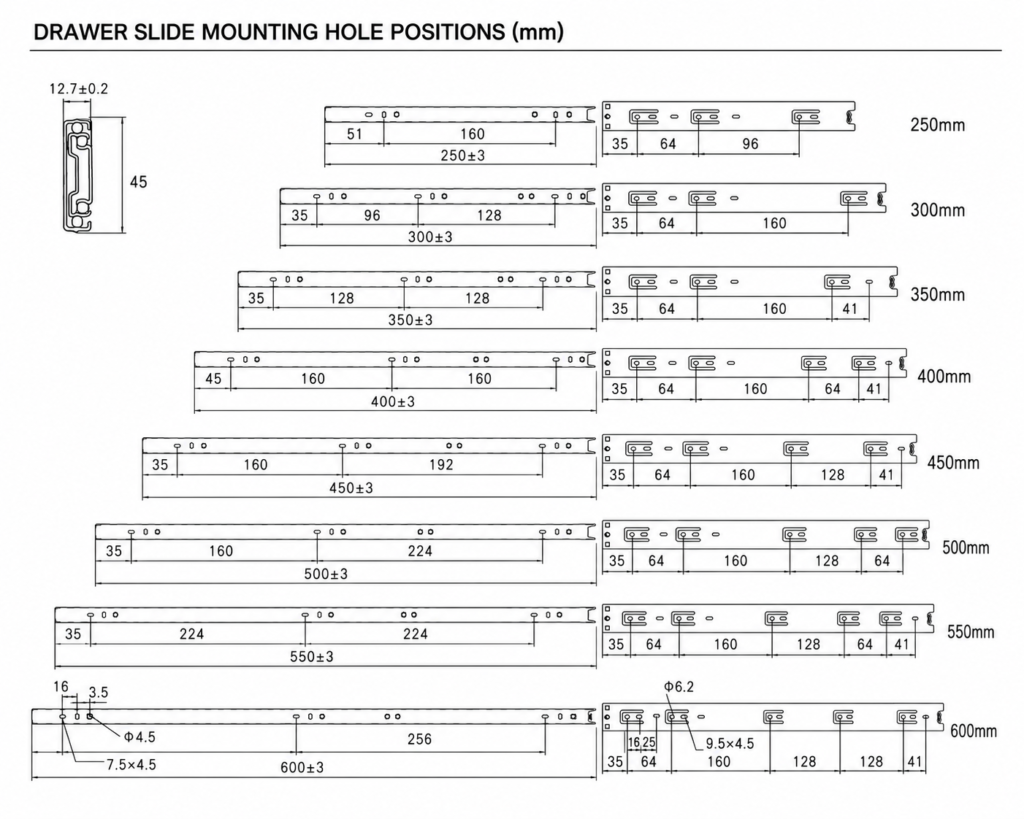

Side-mounted installation, 12.2 ± 0.2 mm.
Service Life:
100,000 cycles.
Surface Finish:

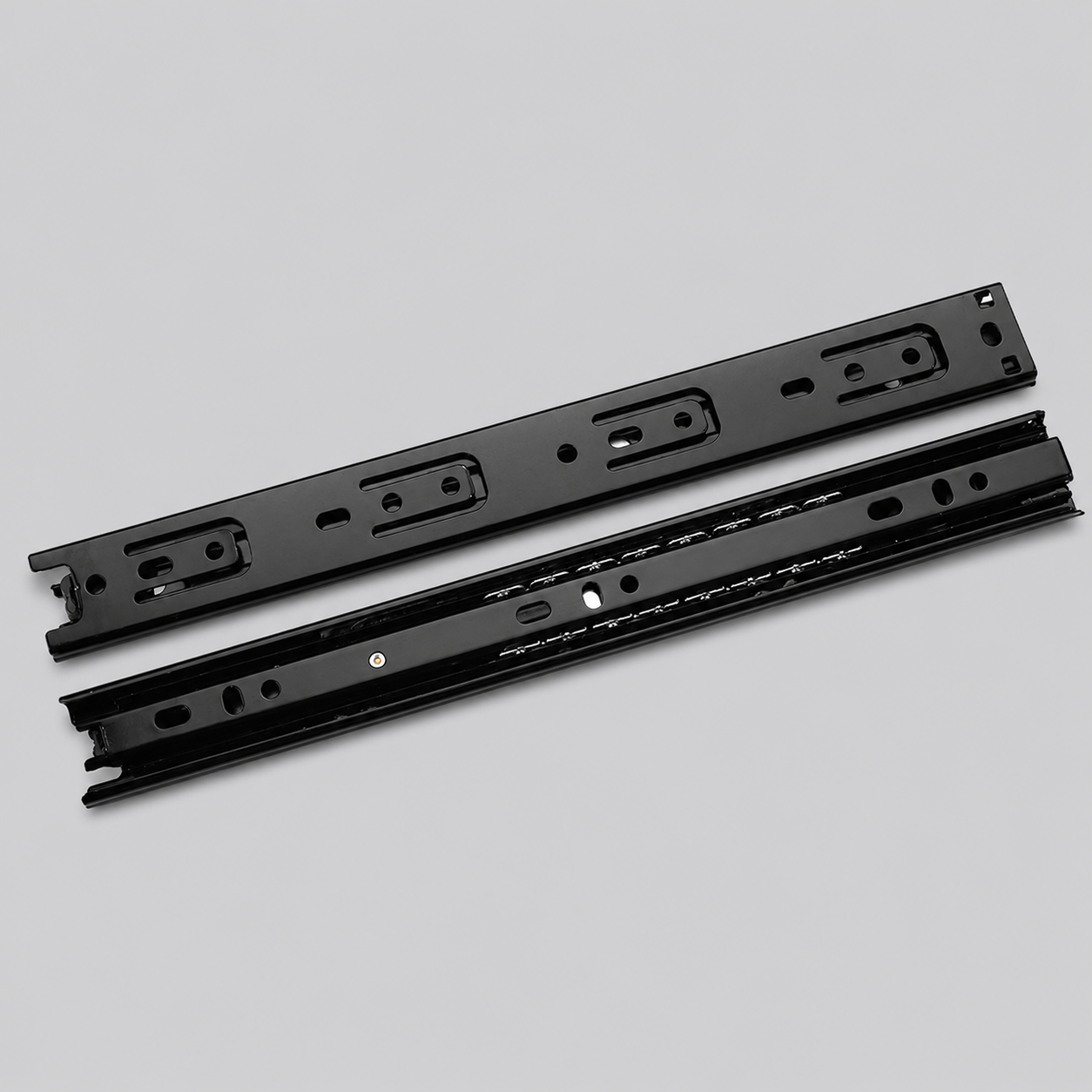

Blue zinc plated, electrophoretic black.
Material:
Cold-rolled steel or stainless steel.
Customization:
Multiple thickness options are available for customization.
Thickness Options:0.9× 0.9 × 0.9mm/1.0× 1.0 × 1.0mm
Packing:20 set/Carton
